Why Is My Hayward Sand Filter Leaking from Top

Top leaks from failed seals

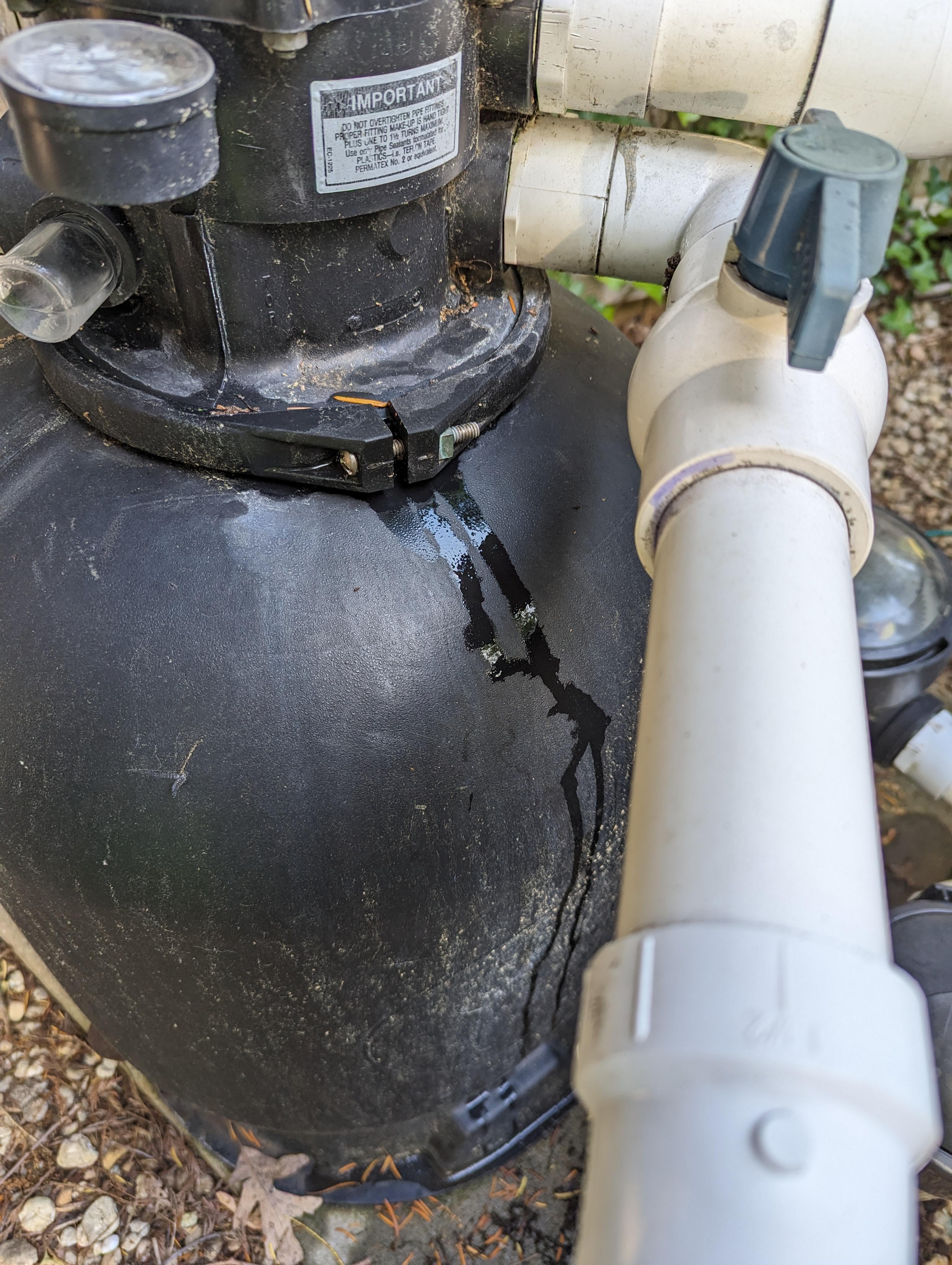

Many pool owners face water escaping near the lid or valve on their sand units. The issue often traces back to pressure changes combined with aging seals. The broader subject here is common swimming pool filter problems that affect flow and clarity across residential setups. When a hayward sand filter leaking from top shows up, it usually means the clamp or an internal o-ring has lost its seal. This happens under normal operating pressure. Over time, seasonal temperature swings can cause the tank neck to expand and contract slightly. They create tiny gaps that only appear once the pump reaches full pressure. Homeowners in warmer climates often notice this problem more frequently. Constant high heat accelerates rubber degradation in the lid components.

hayward sand filter leaking from top happens most often when the pump builds pressure. It builds faster than the gaskets can contain it. Checking the valve position and the condition of the lid seal fixes many cases without buying new parts. Turning the multiport valve one click past the filter setting can force water upward for weeks. The leak becomes obvious only later. Intex sand filter leaking from top follows similar patterns. It tends to involve thinner plastic lids that flex more under pressure. Owners should inspect those models even more carefully after heavy rain. Debris can work into the grooves then.

Another frequent trigger involves improper winterization where trapped water freezes and distorts the gasket seat. Taking five extra minutes each spring to inspect the lid area before startup prevents most surprise leaks. This happens during the first week of operation. For the adjacent problem, Why Is Bestway Sand Filter Leaking from Top goes deeper into the specifics. For the adjacent problem, Common Locations for Hayward Sand Filter Leaking from Bottom goes deeper into the specifics.

steps

Hayward Sand Filter Leaking From Top

Shut off pump and release pressure

1. Turn the pump off at the breaker first. No water moves through the system then. Open the air relief valve on the filter lid and let the pressure drop. The gauge reads zero after that. This step prevents sudden spray when you loosen the clamp. Wait at least two minutes after the gauge shows zero before touching any fittings. In most systems this simple release stops the immediate leak. It lets you inspect safely. Always keep a bucket nearby because residual water will still drip from the valve. Many experienced owners also place old towels around the base of the tank. They catch any unexpected drips that could stain concrete decking.
2. Next, close the return and suction valves if your plumbing allows it. This isolates the filter tank so you can work without draining the whole pool. Many owners skip this and end up with a bigger mess than needed. If your system lacks dedicated shutoff valves, consider installing quarter-turn ball valves during your next upgrade. They make future maintenance far quicker and cleaner.

Inspect multiport valve o-rings for cracks

1. Remove the multiport valve handle and look at the o-rings. They sit between the valve body and the tank neck. Cracks or flat spots here let water push upward during the filter cycle. Feel each ring for brittleness and replace any that show damage. A new set of o-rings costs little and often solves hayward sand filter leaking from top right away. Rinse the valve ports with clean water while the valve is off. This clears sand that may have worked its way into the seals. Running your fingertip around the inside of each port can reveal hidden sand particles. They feel like fine grit and will eventually score the rubber if left behind.

Check the pressure gauge and air relief valve

Before moving to the clamp itself, verify that the pressure gauge needle moves freely. The air relief valve threads are not stripped either. A stuck gauge can give false readings that mask the real cause of rising internal pressure. Many pool service technicians carry a spare gauge in their truck. Swapping it takes only seconds and immediately confirms whether pressure buildup is normal or excessive.

Clean and lubricate the clamp band

1. Take the clamp band off and wipe away dirt, old lubricant, and any sand grains. They have collected in the grooves. Use a soft brush and mild soap, then dry the band completely. Apply a thin layer of food-grade silicone lubricant to the inside of the band and to the tank lip. Petroleum jelly can swell some rubber compounds, so avoid it. Re-seat the band evenly and tighten the bolt in small increments while checking that the lid sits level. This even pressure keeps the seal tight when the pump restarts. An easy trick is to mark the clamp bolt with a permanent marker once it reaches proper tightness. You can quickly return to the same tension after future cleanings.

Reassemble and test for leaks at normal pressure

1. Put the lid back on, tighten the clamp, and open the valves again. Turn the pump on and watch the pressure gauge climb to its normal reading. Run the system for five minutes and check every joint for moisture. If a small seep appears at the lid edge, stop the pump and release pressure again. Adjust the clamp tension slightly then. Many times this second test run confirms the hayward sand filter leaking from top has been fixed. Watching the system during the first cycle also lets you listen for any unusual whistling sounds. They indicate air still trapped inside the tank.

Replace the lid gasket if water still escapes

1. If the leak continues after the clamp and valve checks, the lid gasket itself is probably worn. Order the correct Hayward replacement gasket for your model number. Remove the old gasket, clean the groove, and press the new one in evenly. Reassemble and test once more. This final step resolves the remaining cases of hayward sand filter leaking from top that simple cleaning could not fix. When ordering parts, double-check the filter model number stamped on the data plate. Even small variations between Hayward S244 and S311 models require different gasket diameters.

Practical Tips

Recheck the clamp tension and all seals after each repair step. You know exactly which change stopped the leak then. Test the filter at normal pressure before declaring the job finished. If the hayward sand filter leaking from top returns within a week, the tank neck may be warped. Professional service is the next step. Keep a spare set of o-rings and lubricant on hand for quick future fixes. For related issues see hayward pool filter troubleshooting or intex sand filter leaking from top. Related subtopics include intex sand pump low pressure, pentair sand filter leaking from top, pool motor replacement, and swimming pool pump repair. Owners who maintain a simple seasonal checklist often avoid repeat leaks entirely. They catch early signs of gasket wear before pressure forces water past the seals.

Documenting the date of each inspection in a notebook or phone app helps track how quickly components degrade in your specific climate and water chemistry conditions.
